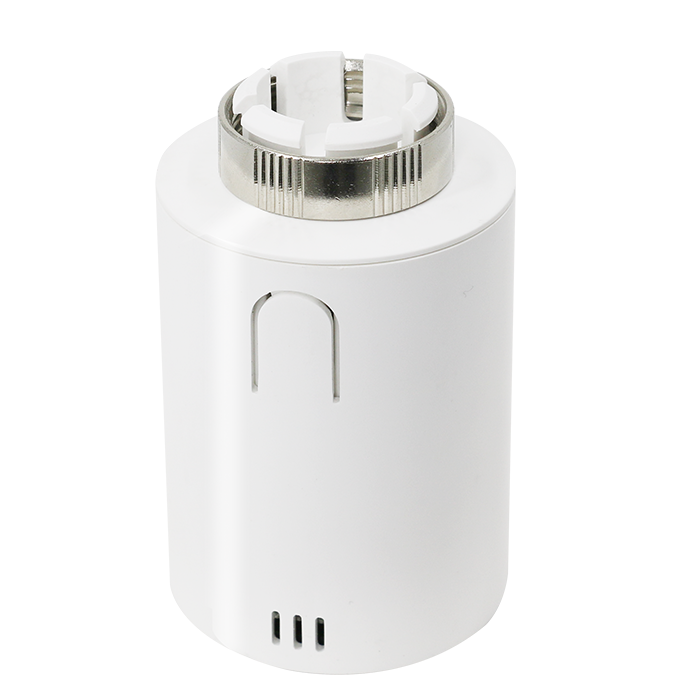

Smart Zigbee 3.0 Thermostat Radiator Valve TR01

Item No.: 00135
*Easy APP programming on smart phone
*Energy Savings
*M30 x 1.5 Universal Type Head to body connection

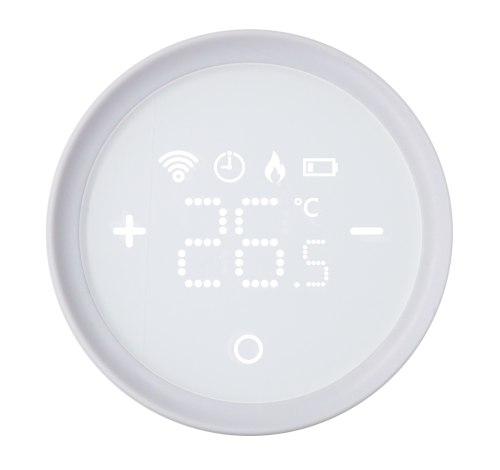

*LED display
*Easy  installation
*PID Accurate temperature control
*7 days program(from APP only)
*quiet motor

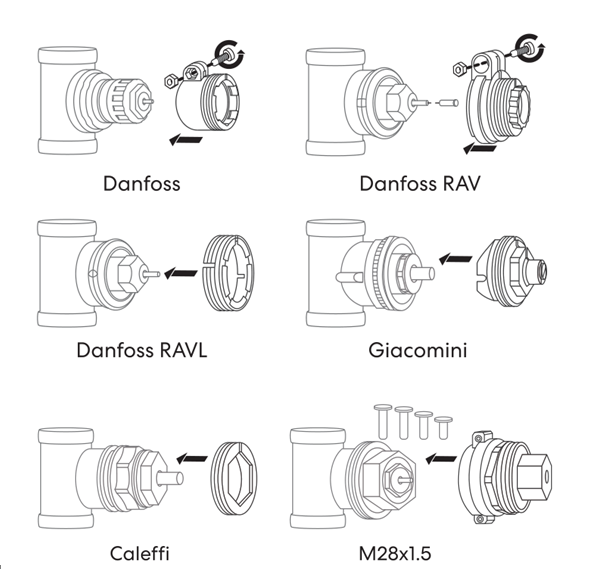

*Multiple adapters
Quantity
-
+
Description Spefification
Description
Item Number TR01
Thermostat Dimension φ55*69mm
Material ABS+PCS(ROHS certificated)
Power Input AA*2 (Alkaline battery)
Motor Extension 5.0mm
Motor Type Brushless motor
Backup Storage EEPROM
Movement Control Method PID
Set Temp Range 5~35℃
Ambient Temp 0~50℃
Floor Temp 0~80℃
Relative Humidity 85%
Sensor Type NTC 10K
Accuracy ± 1℃
Modes Manual (permanent hold)/schedule/eco
IIntegrated TemperatureSensor Yes
Floor Protection yes
Over Heat Protection yes
Programmable/Schedule yes
Smart App Yes (Tuya Smart/Smart Life )

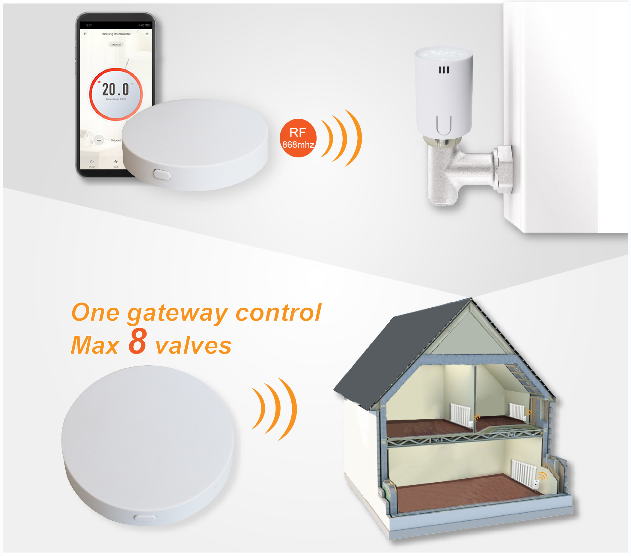

Compatible Wireless Communication Zigbee 3.0, Bluetooth, Zwave, Radio 868Mhz/433Mhz
Functionalities Eco/Schedule/Hold
Interaction Method Touch LED screen
Language English
Certification CE (RED/ECM/LVD) ,Rohs, Reach(According to request)
OEM levels 1. Customized logo and package
2. Customized software (change to customer's user interface and control logic)
3. Customized hardware(change the PCB and schematic based on the request)


Spefification
