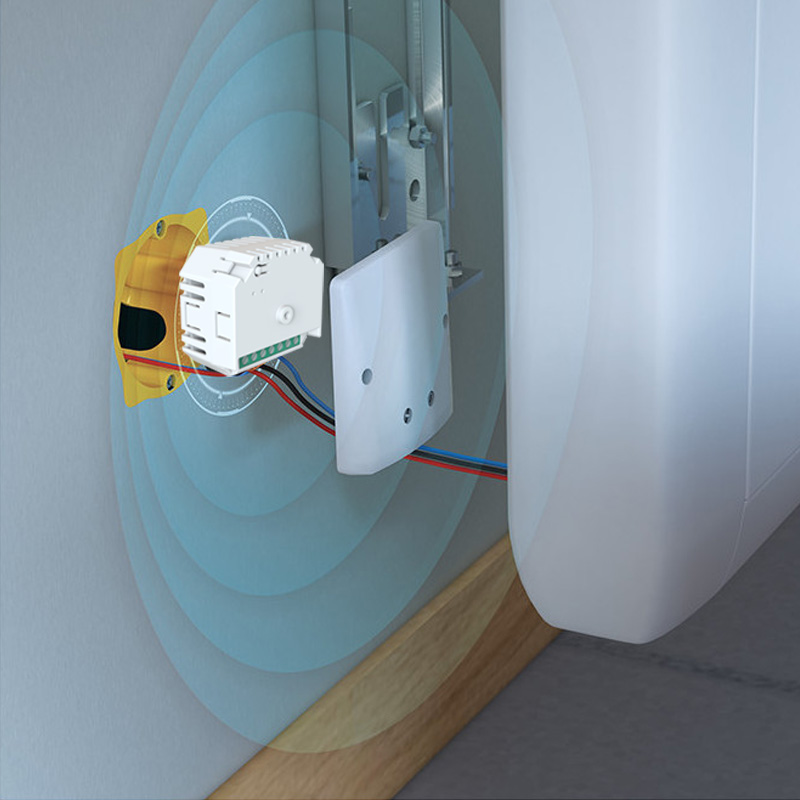

| Designed for electric pilot wire heaters, the WiFi Pilot Wire Heating Module connects it and automates heating management to make energy savings. Compatible with Tuya Smart App, it has several modes: Comfort, Eco, No Frost and Stop. Paired to a compatible home automation gateway, heating management becomes smart and automatic. |
 |
| Item Number | R08 |
| Thermostat Dimension | W-51.3 H-48.7 D-30.5 mm |
| Material | ABS+PCS(ROHS certificated) |
| Power Input | 230VAC |
| Consumption | <0.5W |
| Max Heating Power | 3,680W |
| External Sensor | not supported |
| Communication protocol | WIFI, Tuya App |
| Programmable/Schedule | yes |
| Certification | CE (RED/ECM/LVD) ,Rohs, UL(according to request), FCC, Energy Star （According to request) |
| OEM levels | 1. Customized logo and package 2. Customized software (change to customer's user interface and control logic) 3. Customized hardware(change the PCB and schematic based on the request) |

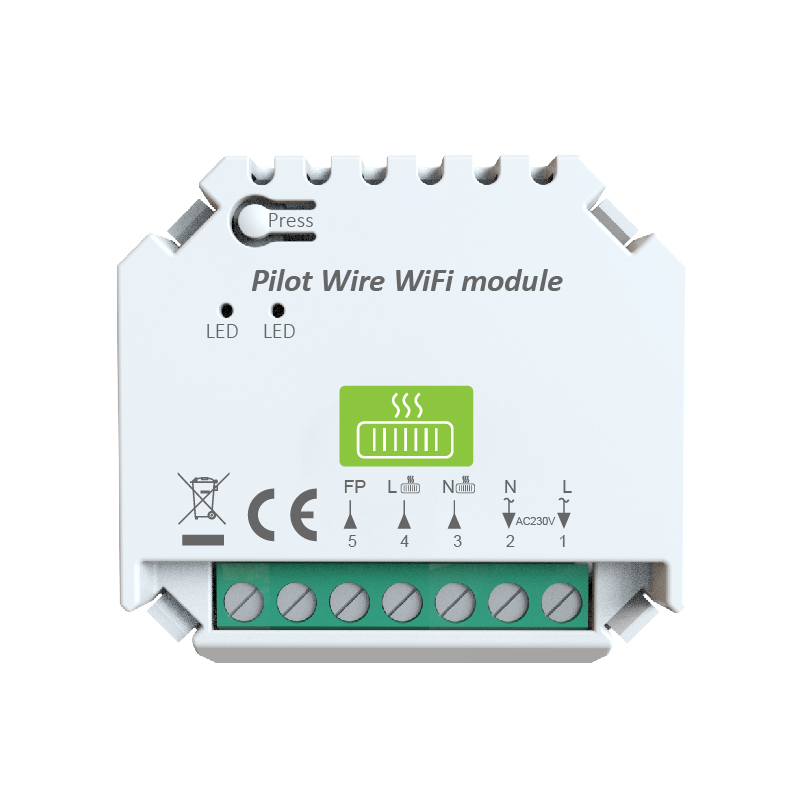

| L | Terminal for the line |
| L+ | Terminal for the heater line |
| N | Neutral |
| N+ | Neutral for the Heater |
| FP | Pilot wire communication |
