| Item Number | HT-10R+E-HUB |
| TRV Dimension | 55x69mm |
| Operating Voltage | 1.8V~3.3V |
| Operating Temp | -10~55C |
| Material | ABS+PCS(ROHS certificated) |
| Set Temp Range | 5~35℃ |
| Ambient Temp | 0~50℃ |
| Floor Temp | 0~80℃ |
| Relative Humidity | 85% |
| Sensor Type | NTC 10K |
| Accuracy | ± 1℃ |
| Maximum TRV | 16 trvs to one hub |
| Adapters |
With Danfoss RA, RAV, RAVL adaptor Giacomini Adapter, Caleffi Adapter,M28x1.5 Adapter
|
| Gateway power | 5V USB |
| Programmable/Schedule | yes |
| Interaction Method | Touch button |
| Language | English |
| Temperature Calibration | yes |
| Frost protection | yes |
| Open Window Detection | yes |

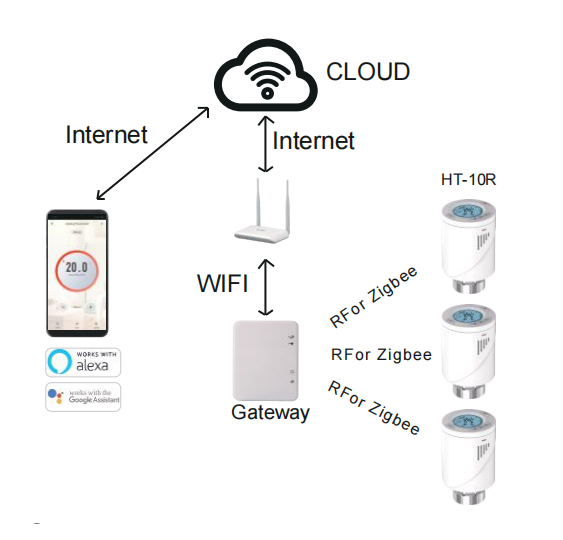

| Wireless Communication | Radio 433/868Mhz,Zigbee 3.0 , Bluetooth |
| Certification | CE (RED/ECM/LVD) ,Rohs, UL(according to request), FCC, Energy Star （According to request) |
| OEM levels | 1. Customized logo and package 2. Customized software (change to customer's user interface and control logic) 3. Customized hardware(change the PCB and schematic based on the request) |
